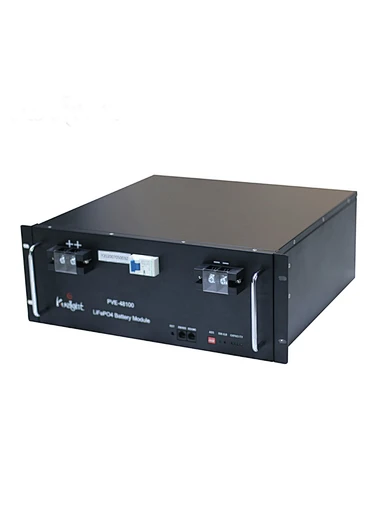

48V LiFePO4 Battery Solar Battery 48V 51.2V 50Ah 100Ah 200Ah LiFePO4 Batteries For Network Data Room solar batteries
price
$2130.00 / piece
PVE48200
1 piece
Shenzhen
Quantity
Unable to ship to shipping address, please feedback to us
- Place of Origin:Guangdong, China
- Brand Name:Kweight
- Model Number:PVE48200
- Battery Type:LiFePO4
- Voltage:48V
- Capacity:200Ah
- Certificate:CE/UN38.3/MSDS
- Cycle life:3000 Times @ DOD 100%
- Material:LiFePO4/Graphite/Metal case
- Application:Uninterruptible Power Supplies
- Battery Size:3U/4U/5U module
- Color:Balck
- OEM/ODM:Warmly Welcomed
- Warranty:2-5 Years
Product Description

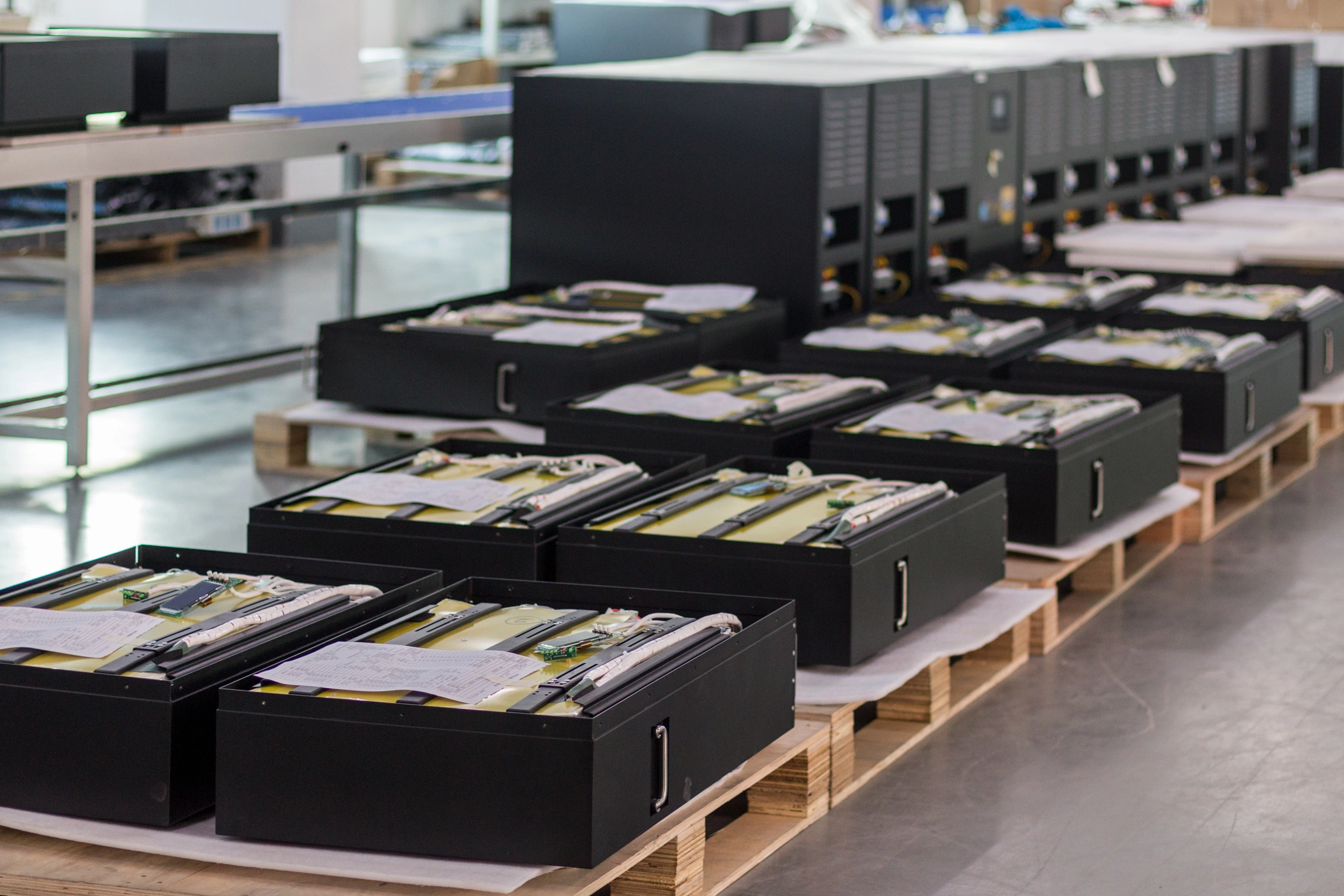

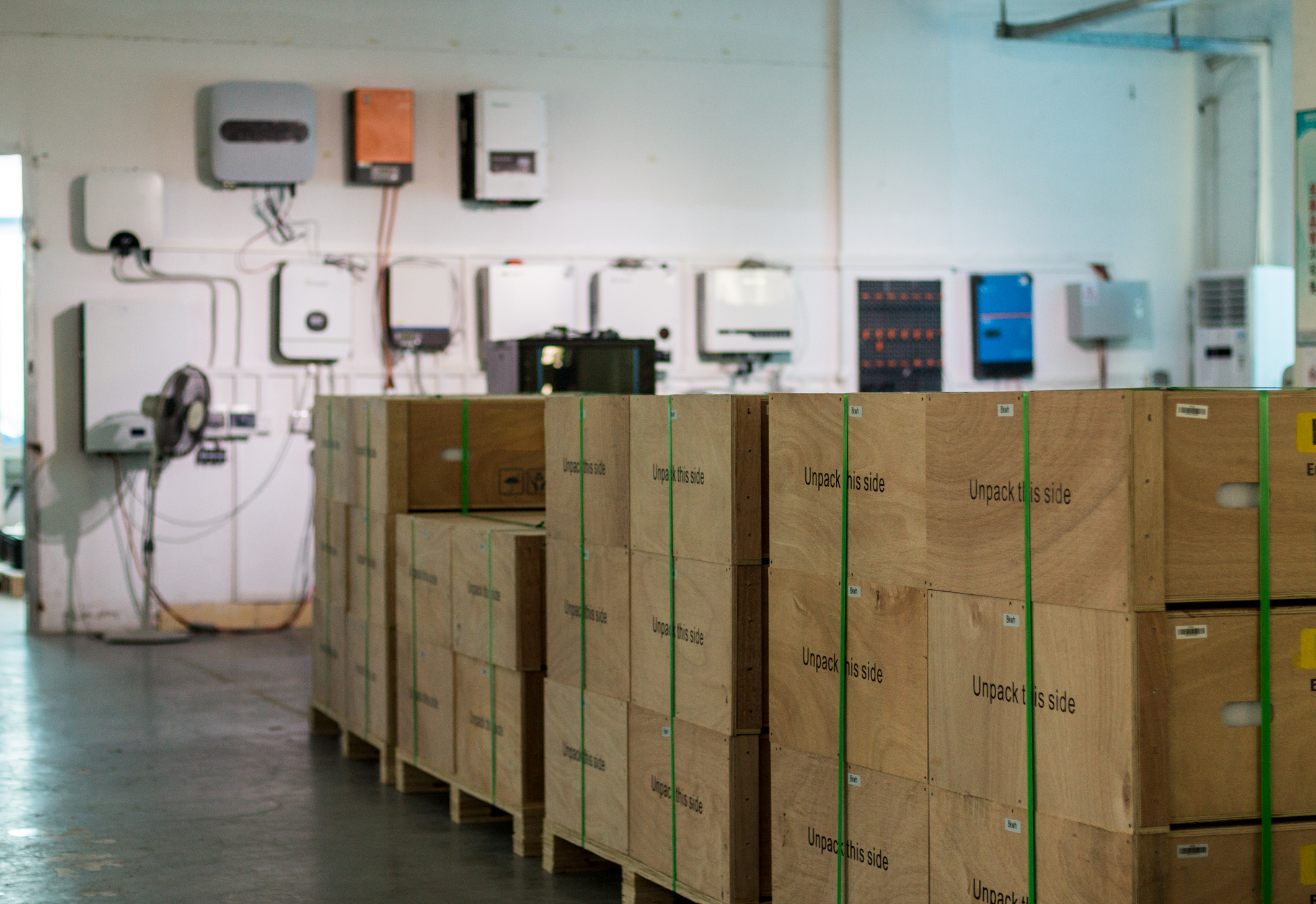

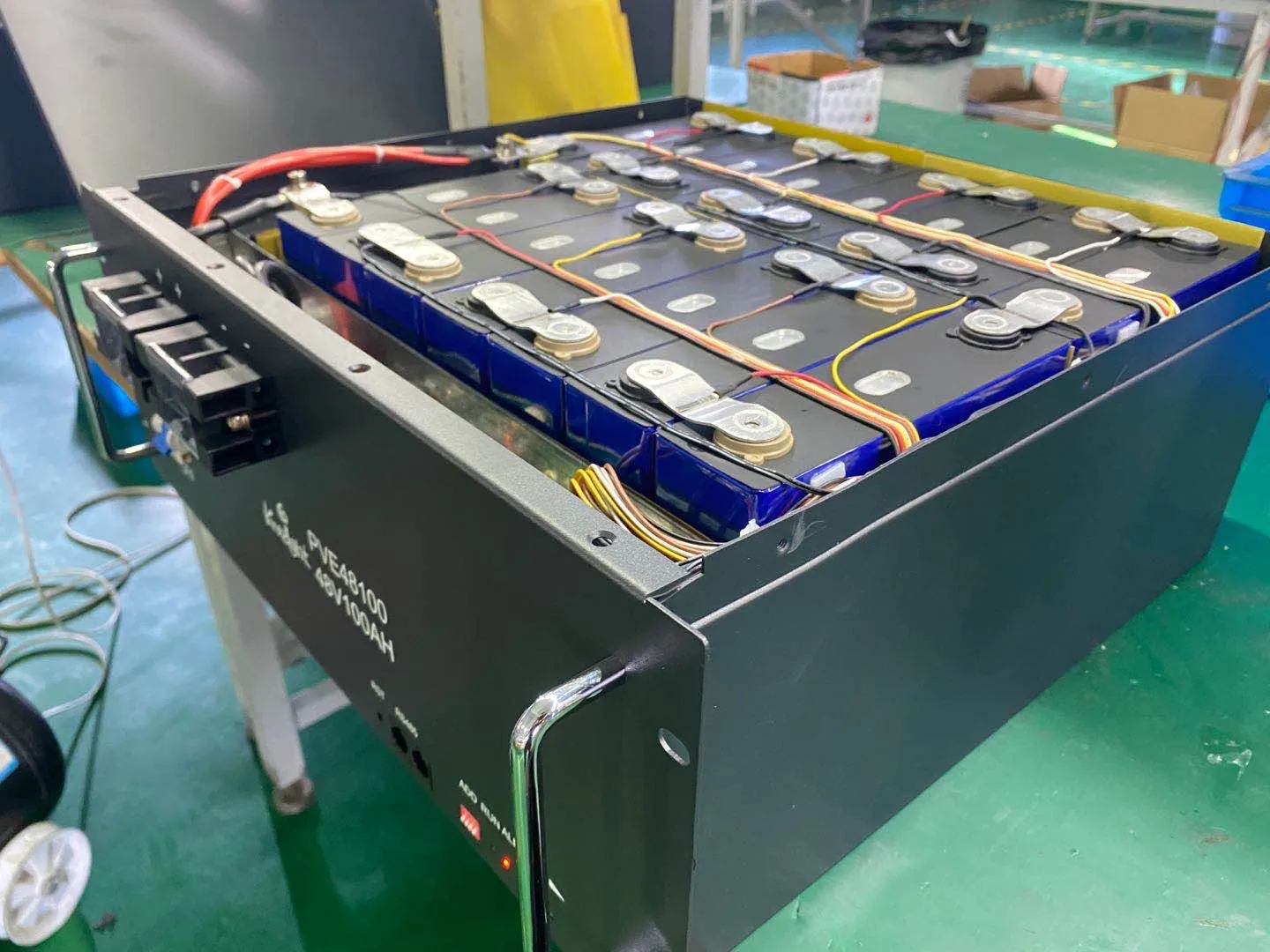

Production workshop

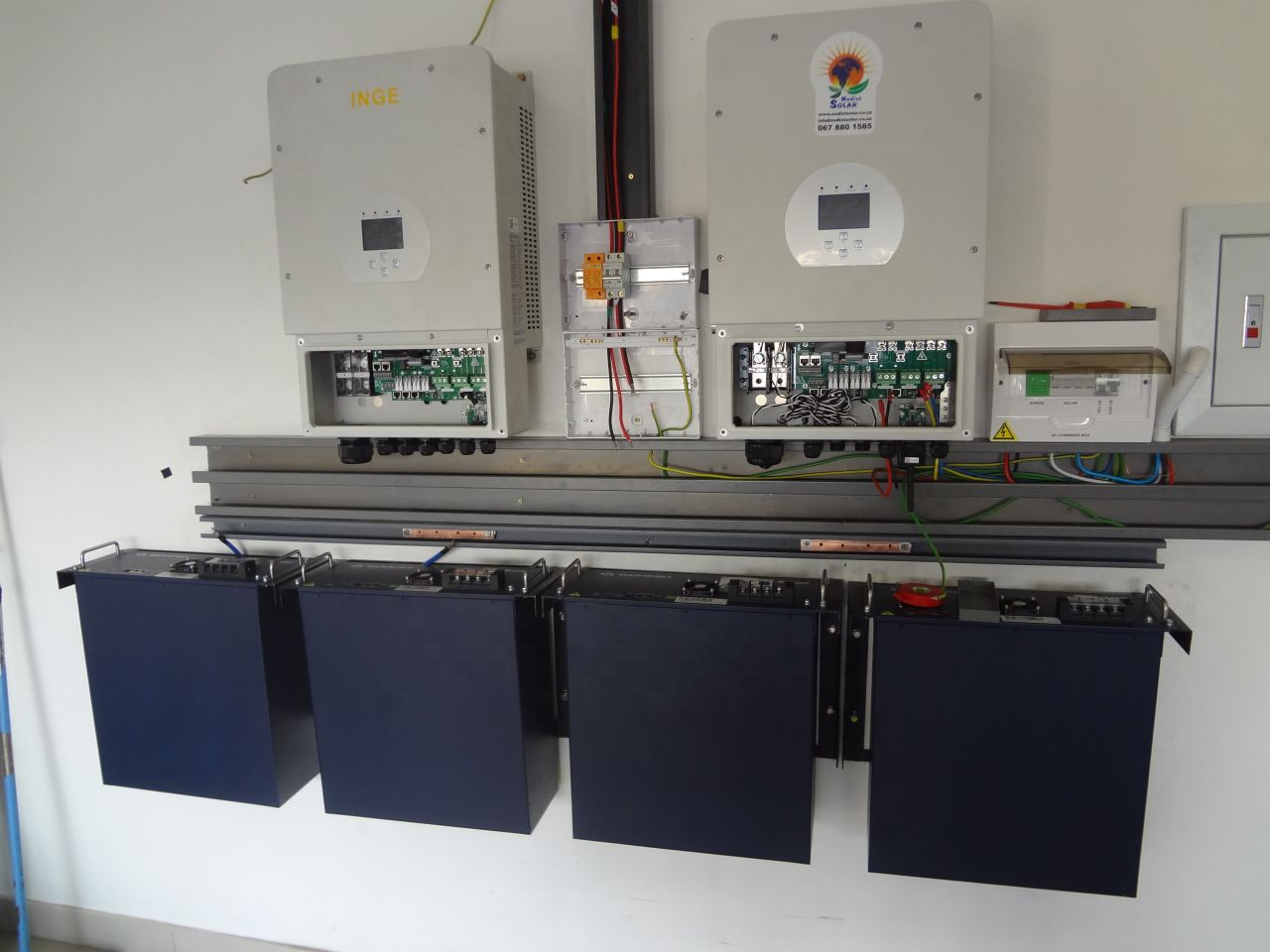

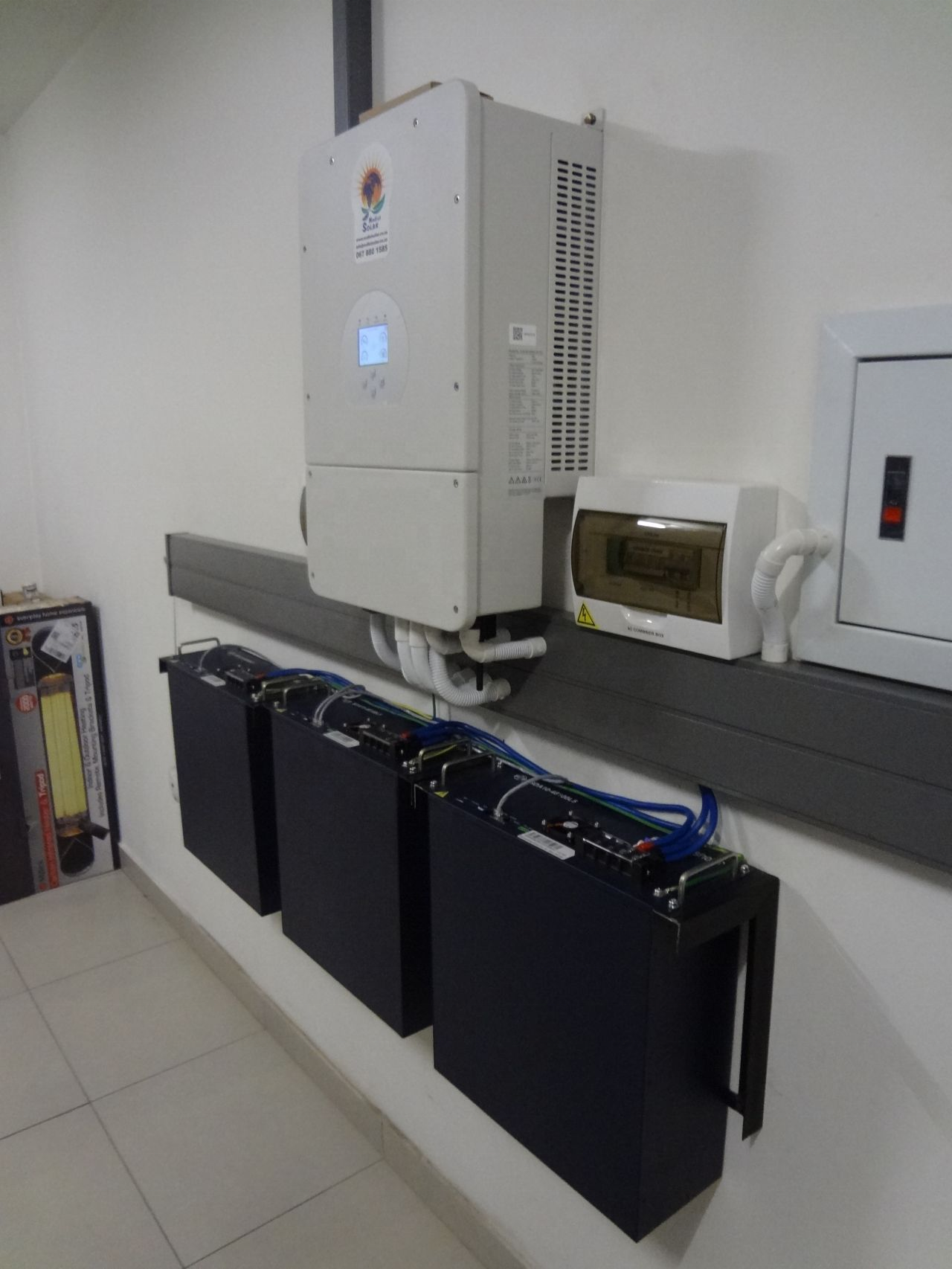

Product Usage
Modular Design Allowing Extension Whenever Wanted, Allows For Expansion From 2.4KWh to 15KWh System, And Can Parallel To Get Bigger Energy Capacity.
Kweight Battery Storage System Has High Output Power And Usable Energy Ratio, They Can Reach 95% Usable Ratio.

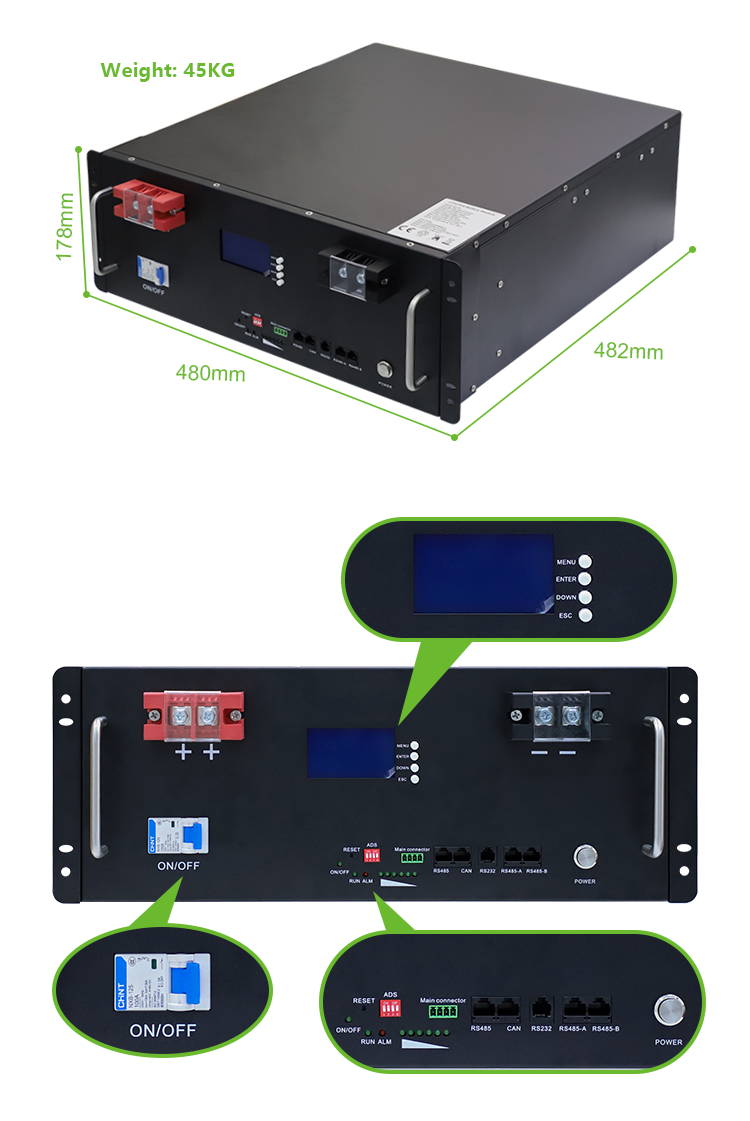

Product Description

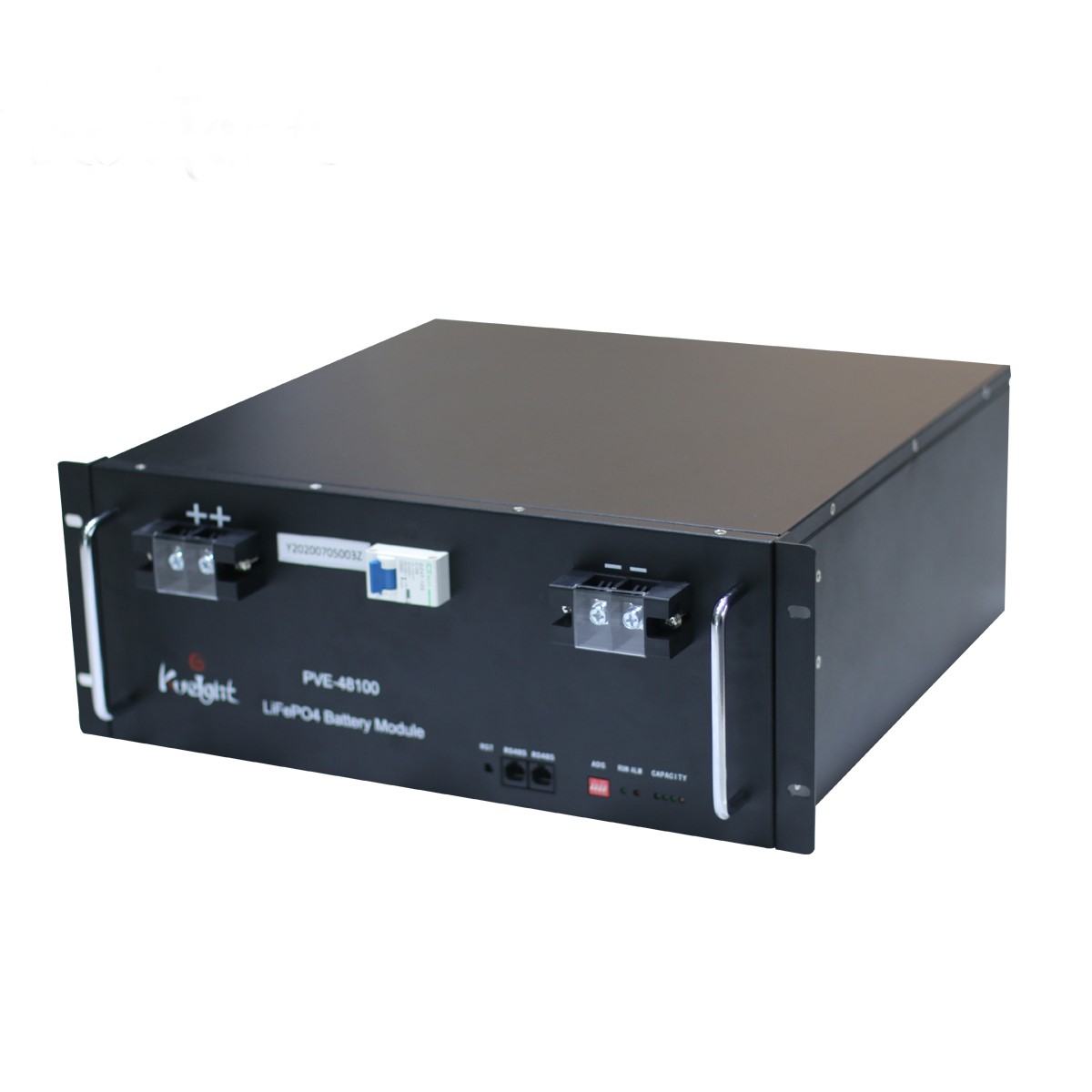

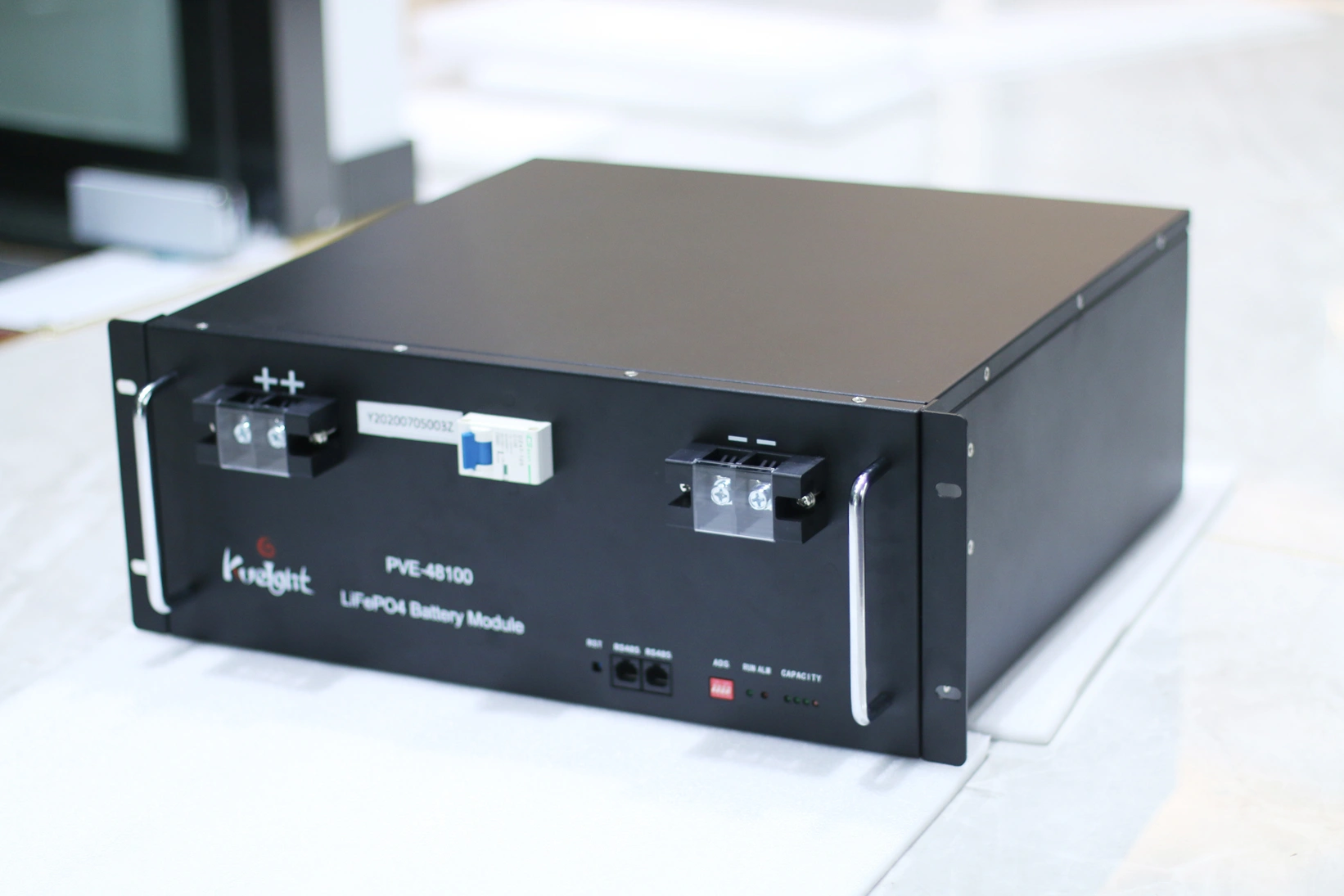

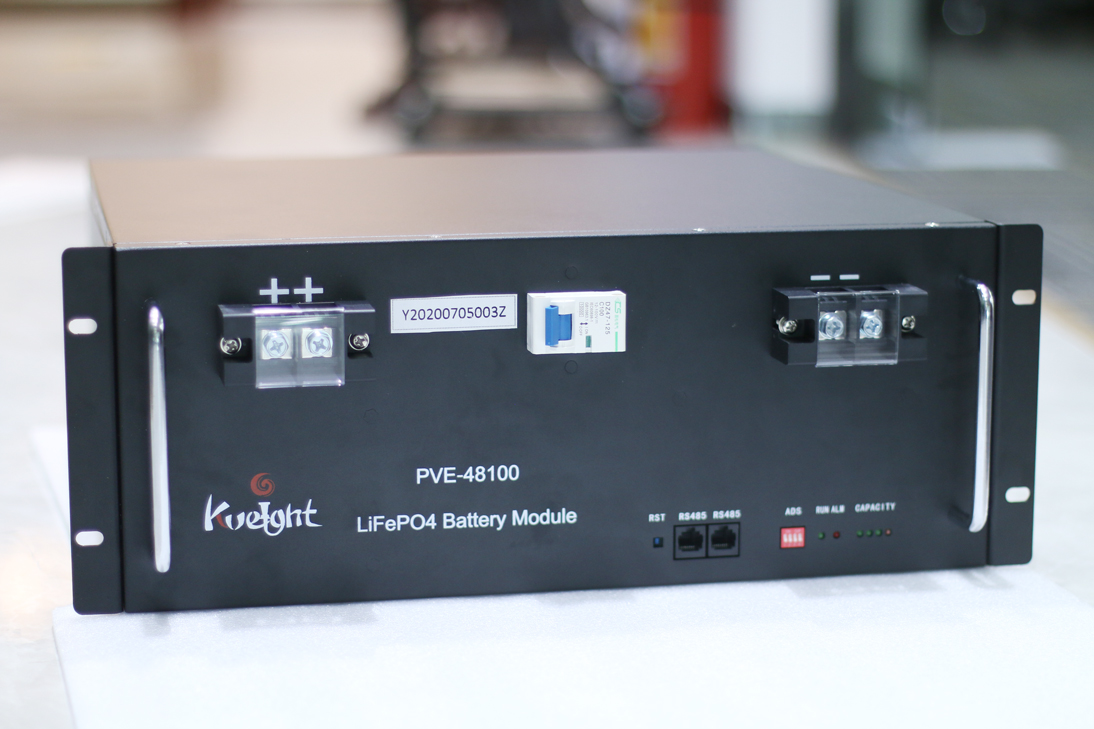

48V 100Ah lifepo4 battery pack
->Standard 48V system
->The most popular battery capacity: 5KWh
->CAN2.0/RS485/RS232
->Total energy extends to 30KWh by 6 parallel battery packs
->Installation: Floor Wall mounted
->Matched with various famous brand inverters
->The most popular battery capacity: 5KWh
->CAN2.0/RS485/RS232
->Total energy extends to 30KWh by 6 parallel battery packs
->Installation: Floor Wall mounted
->Matched with various famous brand inverters
Cells Specification | ||||||
No | Item | General Parameter | Remark | |||
1 | Capacity | Typical:200Ah | Standard discharge after Standard charge | |||
2 | Nominal Voltage | 3.2V | Mean Operation Voltage | |||
3 | Internal Impedance | ≤0.4mΩ | Under 20±5℃ Environment Temperature , the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine to test | |||
4 | Standard charge | Constant Current 0.5C5A Constant Voltage 3.6V 0.02C5A cut-off | Charge time : Approx2.5h | |||
5 | Rapid Charge | Constant Current 1C5A Constant Voltage 3.6V 0.02C5A cut-off | Charge time : Approx1.5h | |||
6 | Standard Charge Cut-off Voltage | 3.6V | Voltage of the battery when the Charge is stopped | |||
7 | Standard Discharge Cut-off Voltage | 2.5V | Voltage of the battery when the discharge is stopped | |||
8 | Standard discharge | Constant current 1C5A end voltage 2.5 V | 100A | |||
9 | Maximum discharge current | Constant current：1C5A end voltage：2.5 V | 100A@≧0℃ | |||
10 | Dimension | Thickness:48±0.5mm Width:173.9±0.8mm Height:120.6±0.8mm | Initial Dimension | |||
12 | Operating Temperature Range | Temperature:-20~60℃ Humidity： ≤65%RH | Recommended charge/discharge current≤1I1 (50A),when cell temperature is lower than0℃， Recommended cool the cell, when cell temperature is higher than 60℃ | |||
13 | Storage Temperature Range | -20℃ ~25℃ | Recommend（ 25±3℃ ）；≤90%RH storage moisture range. | |||
